Truss Rescue Bridge
Project Date
Nov 2024
Course/Company
ME80: Mechanics of Materials
Scope
CAD, Analysis, FEA
Timeline
3 weeks
Tools Used
Fusion 360, SkiCiv, SLA 3D Printing
Project Overview
Our goal was to create a light, modular bridge that could be easily assembled for research expeditions and/or rescue missions.

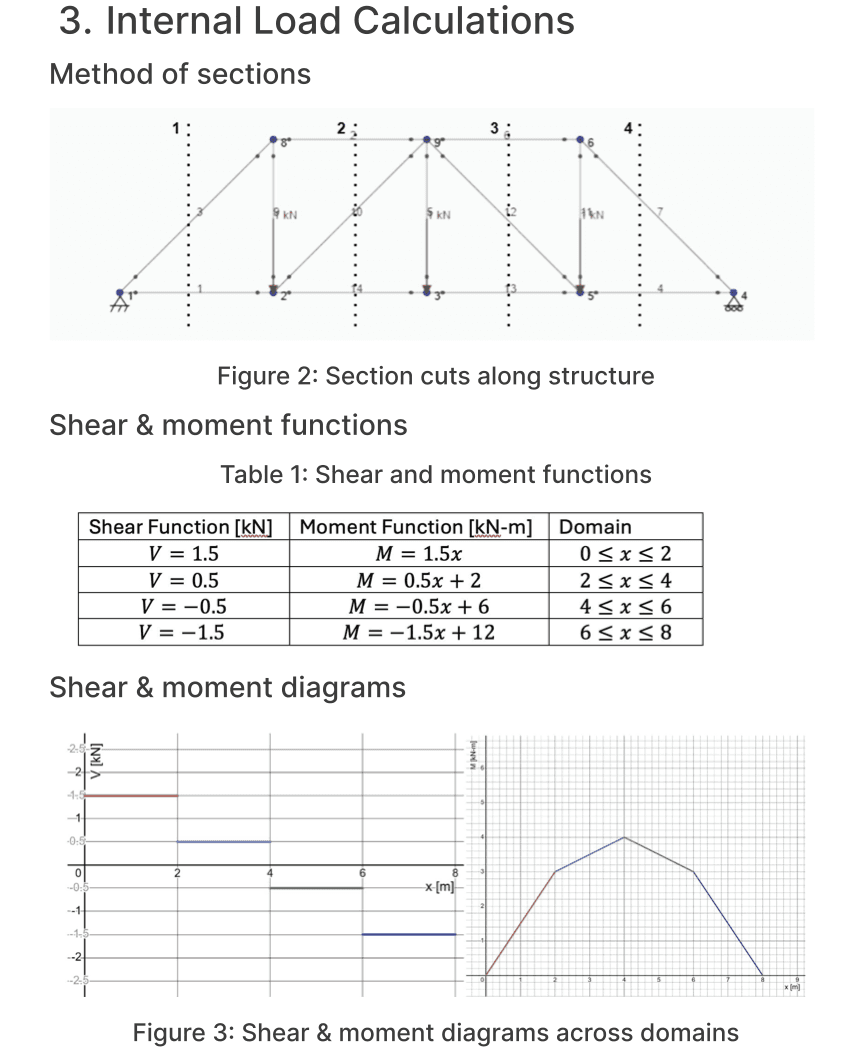

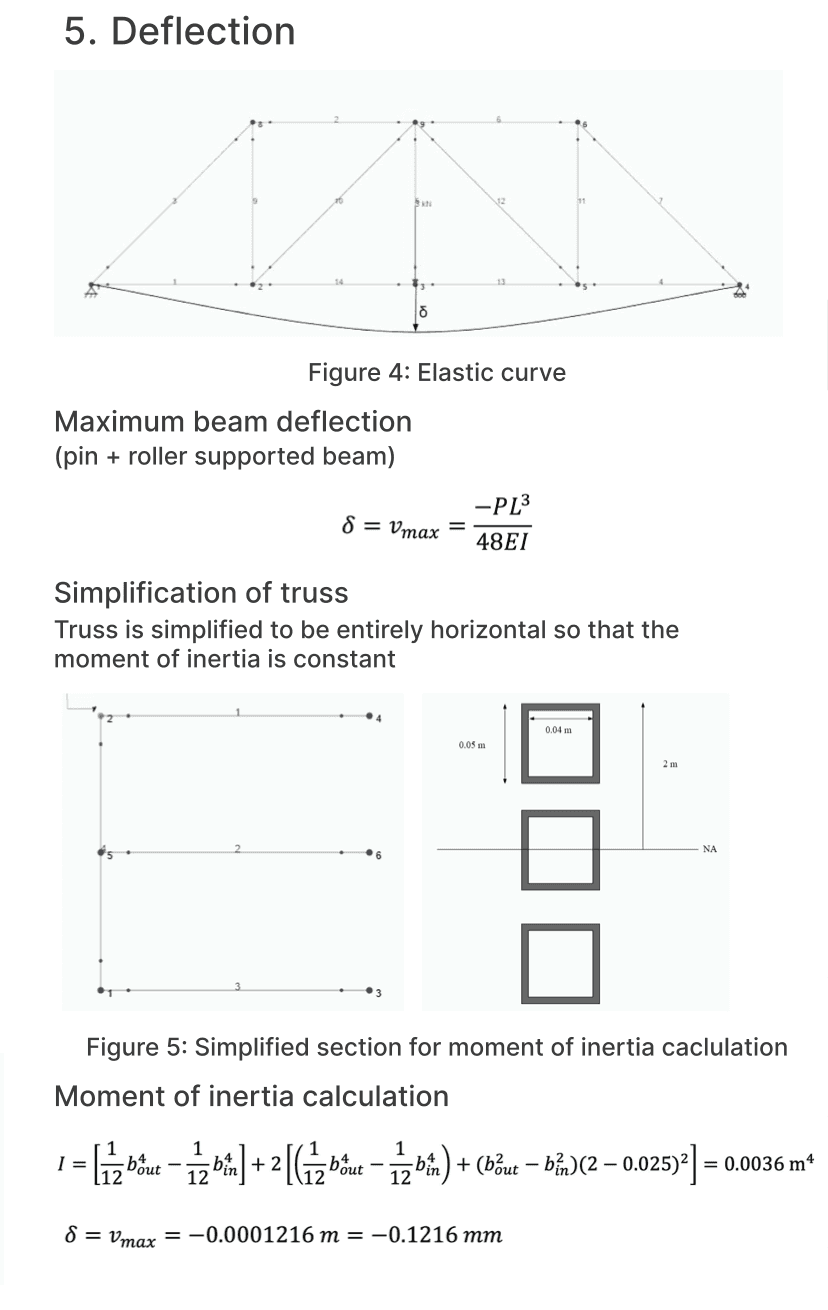

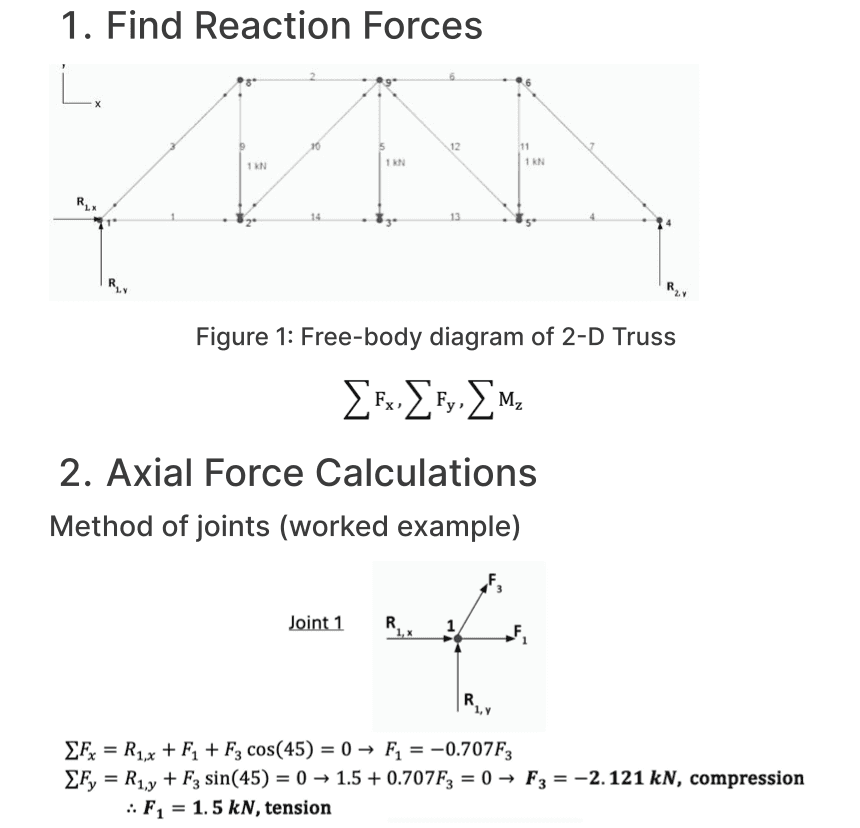

Calculations & Analysis

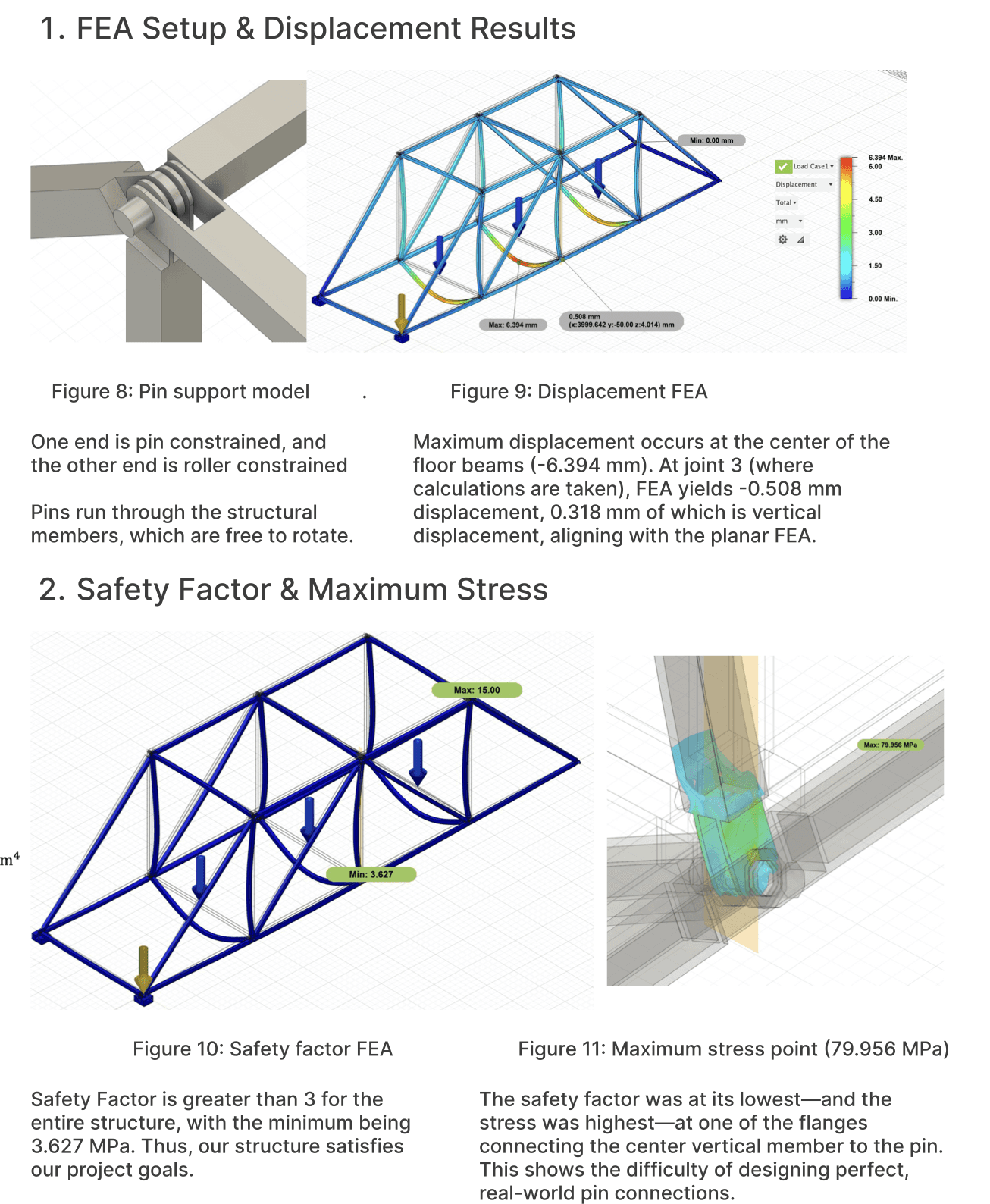

FEA/Simulation

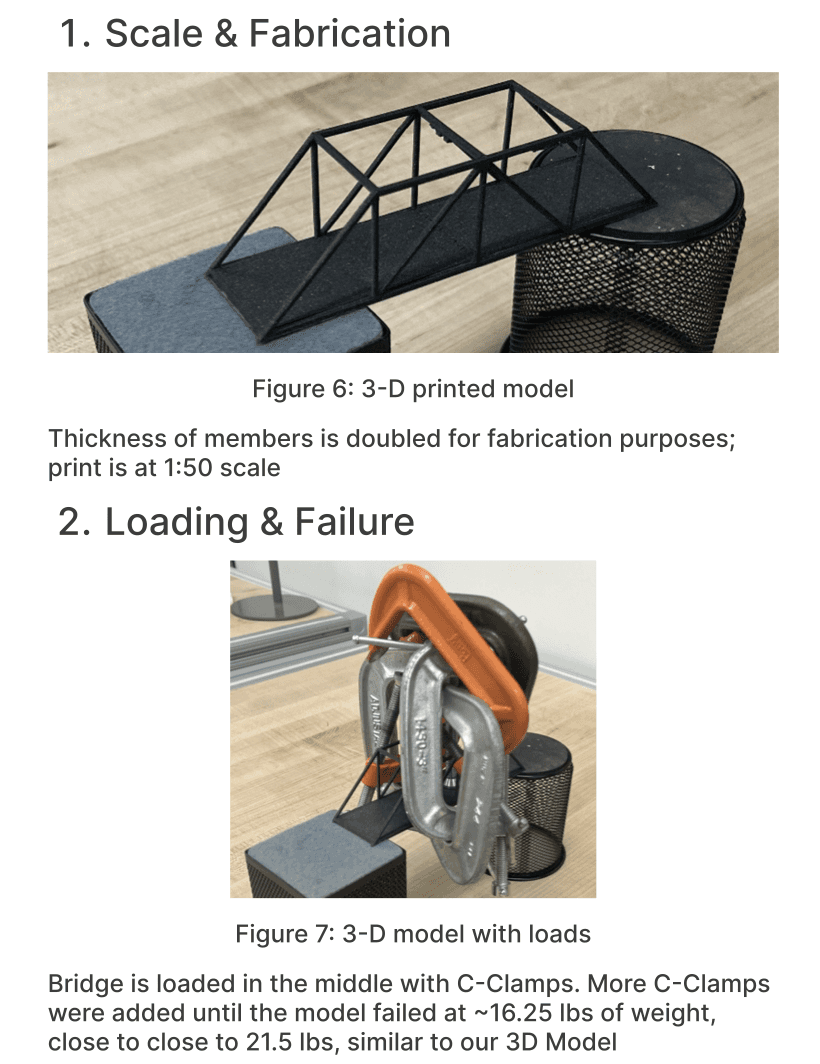

Physical Prototype + Testing
Discussion & Conclusion
